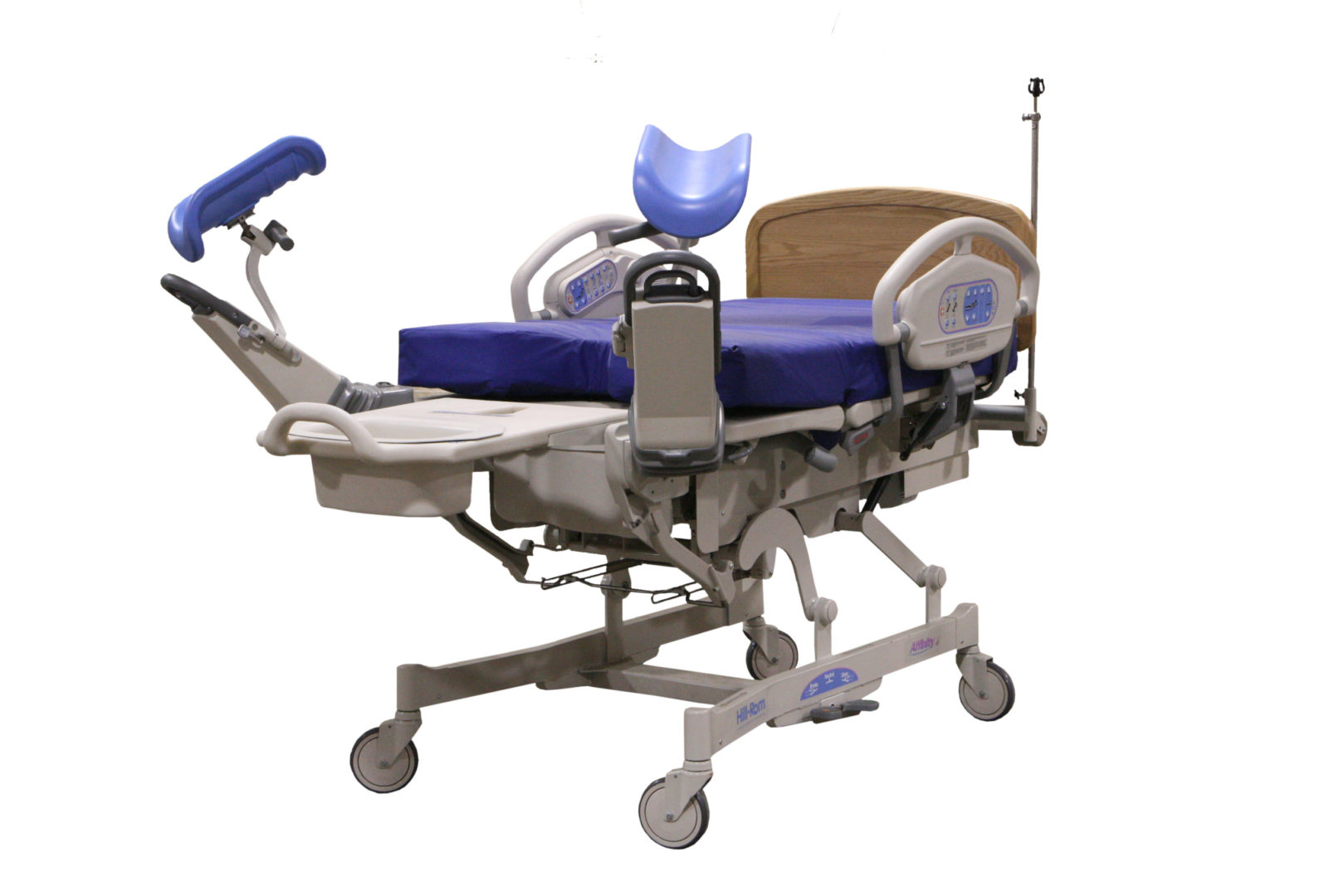

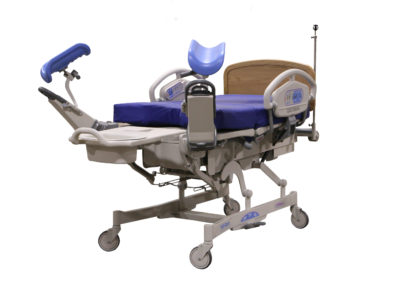

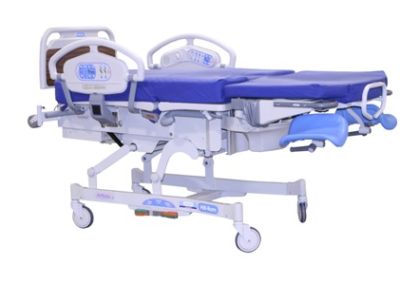

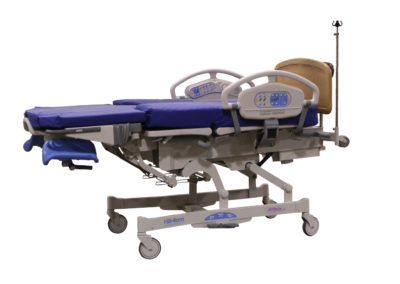

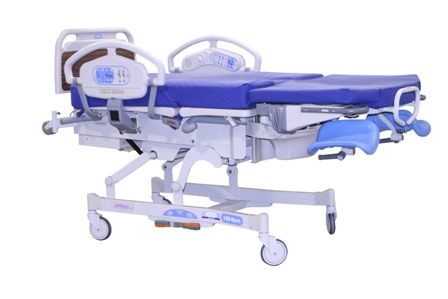

Hill-Rom P3700 Affinity IV Birthing Bed

Request more information about this product

Call us at 1.336.386.1040


Overall Length: 90” (228.6 cm)
Length from Roller Bumpers to Break in Seat Section: 61 ⅞” (157 cm)
Length from Break in the Seat Section to End of Bed: 28 ⅛” (71 cm)
Maximum Width (siderails stored): 36” (91 cm)
Maximum Width (siderails up): 39” (99 cm)
Maximum Headboard Height: 52” (132 cm)
Maximum Siderail Height (without mattress): 14 ¾” (37.47 cm)
Minimum Under-Bed Clearance: 5” (13 cm)
Mattress Size: 35” x 78” (89 cm x 198 cm)
Caster Size: 6” (15.2 cm) or 8” (20 cm)
Maximum Bed Weight: 480 lb. (218 kg)
Head Section Inclination (maximum): 65°
Seat Section Inclination (maximum): 15°
Bed Height Range: 18” (46 cm) to 34” (86 cm)
Bed Height Range (with mattress): 22” (56 cm) to 38” (97 cm)
Trend-Like Position (maximum):
Foot Section Weight Capacity (maximum): 400 lb. (181 kg)
Head Section Lift Capacity (maximum): 200 lb. (91 kg)
Maximum Patient Weight: 500 lb. (226.8 kg)

Download PDF
